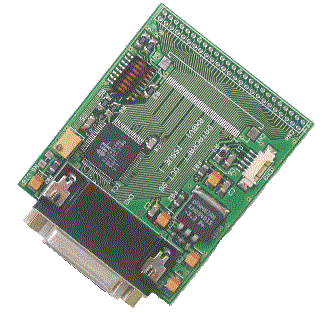

The RXBV1 board forms the receiving end of a PanelLink
interface. It is based on the Silicon Image Sil 141 IC and
provides the ability for display panels from VGA to XGA to be
driven at up to 10 meters from the controller board. Connection
is also provided for the back light supply.
Click here RXBV1.PDF (125K) to view the specification or right click
and select "Save Target as" to download file. |
