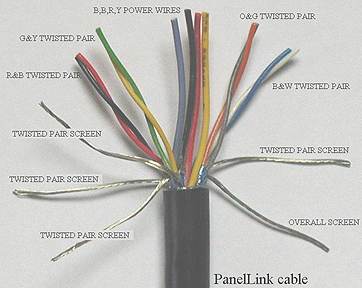

This CBLV1 cable
has been specially designed by Datacraft to provide the
PanelLink connection between the VGAV5 and RXBV1 boards. As well
as 4 individually screened twisted pairs (28AWG) for data
transfer the cable also contains 4 further wires (24AWG) for
display and back light supplies.
The cables overall diameter is nominally 7.4mm. Datacraft can
supply the cable separately or made up with connectors.
Click here CBLV1.PDF (74K) to view the specification or right click and
select "Save Target as" to download file. |
